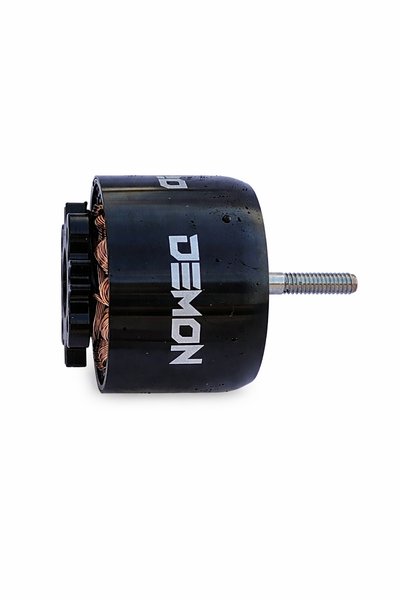

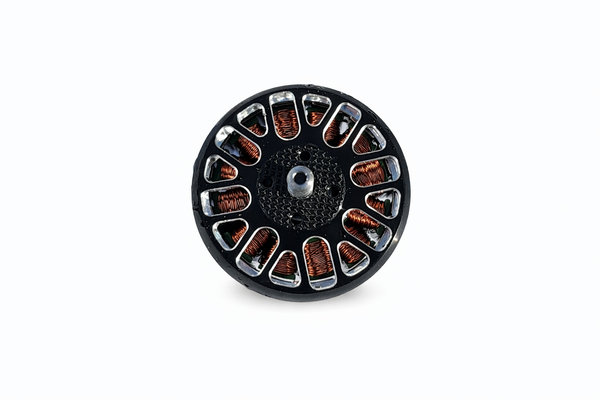

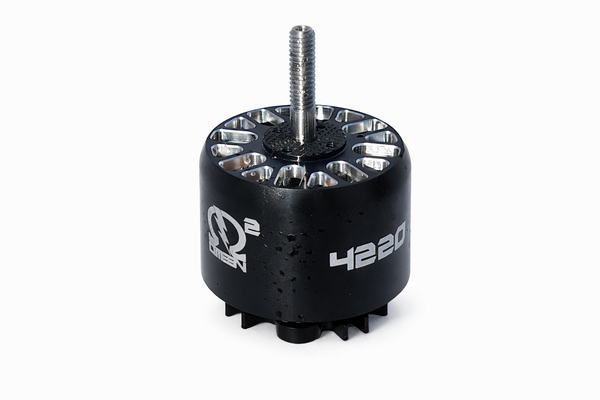

Demon Power Systems Omen Series v2 H.O. 4220 motor
type: Motors
Vendor: dronebuildz.com
Description:
Demon power systems 4220 Omen V2 H.O. motor.
We have spent hundreds of hours in design and testing these motors. They will perform past your expectations! Even more durable to exceeded the highest performance needs!
H.O. (high output) Tech specs:
-Ultra high temp 320C (500 F) coating and high density copper windings.-6mm hollow shaft
-additional cooling area on main rotor and base
-10mm nut on bottom shaft
-Additional stator area maximizing throughput
-14 Gauge 750mm motor wire
-7075 T-6 aluminum Head and base
-High efficiency stator laminations
-Hi temp Arc magnets
-Large bearings with 45,000 rpm design limit.
-Keyway lock in hub for all propeller types.
-Bolt pattern 30mm radius and M4 bolts
-Wire protected base plate
-Stator size: 42 wide x20 high
-Weight: 245g Raw motor no wires
