EXCELLENT CAM FOR YOUR MINI QUAD!!
Performance:
Frequency: 5.8G
Channel: 40CH (5 bands, 8 frequency points)
Bands: A, b, E, F, r
Channel: 1,2,3,4,5,6,7,8
Transmit power: 0Mw, 25mW, 50mW, 200mW
Working voltage: 5.5V-2.5V
Working current:
95mA-110mA (0mW) shutdown status
250 mA-510 mA (25 mW) 14 Dbm
270mA-640mA (50mW) 17dBM
330mA-740mA (200mW) 23dBM
Sharpness: 600TVL M7 lens
Wide angle: 120 ° FOV 150 ° DFOV
Image format: NTSC
Channel control: a button (key for the channel to increase the function,)
Display: 1 digit digital display LED
2. Method of operation:
1. Power on display 0, short press the button to adjust the channel; long press button 2s, you can adjust bands; CH and bands are converted to 2s, a memory function.
2. Press the button to adjust the RF power level, then the RF level flashes, then release the button, then enter the RF power level adjustment, short press the button to adjust the RF power level, 25MW (show a bar), 50MW (Show two bars), 200MW (show three bars),
Shutdown (display 0 status) has memory function
3. (Display 0 status) Turn off the RF emission, display 0 status, press the button to adjust the CH, long press the button 2s, you can adjust bands, in the absence of adjustment to the RF level, there is no operation in the case of 4S Display 0 status, memory function,
4. always press 4S, by flashing BAND or CH state, into the RF power level status flashing bar (8 words with three horizontal)
5. In the flashing state, you can adjust the CH, long press 2S can adjust the FR. Long press 4S can adjust the power file, 25MW (show a bar), 50MW (show two bars), 200MW (show three bars), release the button 4S after the start flashing set CH, bands, RF Power file, a memory function, a power will scroll to adjust the adjustment of the CH, band and RF power level.

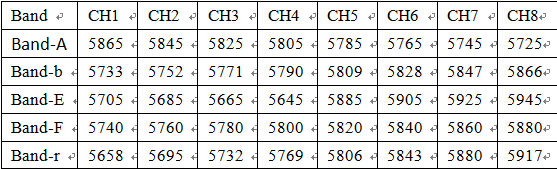

Frequency table:
Size: 19.5 * 14.0mm (L * W)
Weight: 5g
